BLDC驅動控制器 SYDL380

介紹: 主CPU采用基于ARM 32位的cortex-M3的STM32F103系列芯片，主頻72MHz，FLASH128K。有多項保護措施：最大電流保護，電流持續時間保護，堵轉保護，硬件過流保護，傳感器信號異常保護，電機缺相保護。

介紹1: The main CPU is STM32F103 series chip based on ARM 32-bit Cortex-M3, with a main frequency of 72MHz and FlASH128K. There are a number of protection measures: maximum current protection, current duration protection, blocking protection, hardware overcurrent protection, sensor signal anomaly protection, motor phase loss protection.

产品说明

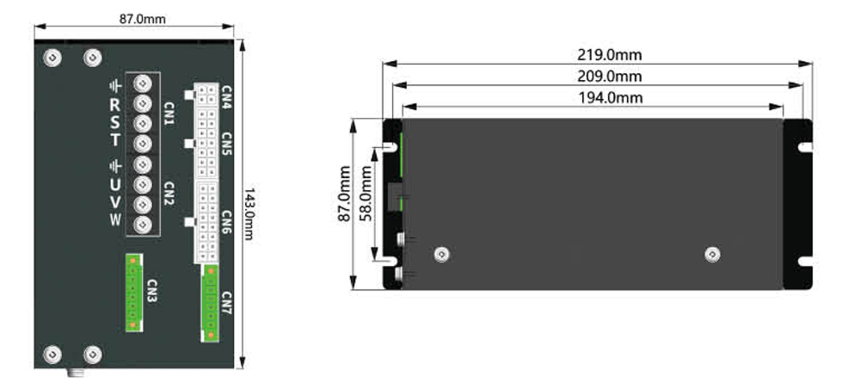

安裝尺寸圖

主CPU采用基于ARM 32位的cortex-M3的STM32F103系列芯片，主頻72MHz，FLASH128K。有多項保護措施：最大電流保護，電流持續時間保護，堵轉保護，硬件過流保護，傳感器信號異常保護，電機缺相保護。

The main CPU is STM32F103 series chip based on ARM 32-bit Cortex-M3, with a main frequency of 72MHz and FlASH128K. There are a number of protection measures: maximum current protection, current duration protection, blocking protection, hardware overcurrent protection, sensor signal anomaly protection, motor phase loss protection.

一.技術參數

型號 Model			SYDL380	SYGD-A	SYGD-C

類型 Type			主軸驅動器 Spindle driver	驅控一體 Driver controller	驅控一體 Driver controller

尺寸 Size			21987143	21987143	213140142

輸入電壓 Input Voltage			三相AC380V Sigle-phase AC220V

輸入電壓 Input Voltage		主軸 Spindle	37.0 N.m	37.0 N.m	37.0 N.m

		進給軸 Feed Shaft			10.0 N.m

輸入 Input	輸入IO Input IO		2	10	10

	脈沖 Pulse		差分脈沖+方向 Pulse+Dir	0	0

輸出 Output	輸入IO Input IO		1	6	14

	脈沖 Pulse		0	1	0

	繼電器輸出 Relay Output		0	1	1

激光定位燈 Laser Positioning Lamp			0	1	1

通訊方式 Communication Method			485	232	232
